Microsoft OneDrive Configuration

Configure Azure App

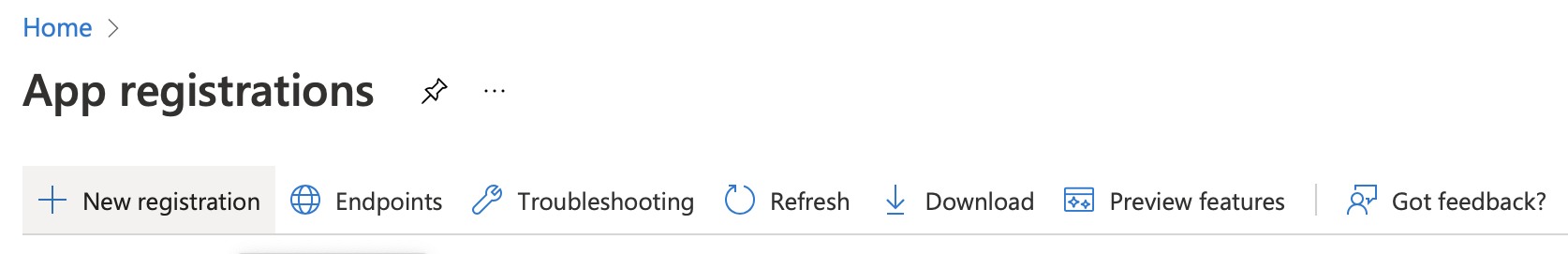

Go to Microsoft Azure Portal and navigate to App registrations. Register a new app with the option New registration.

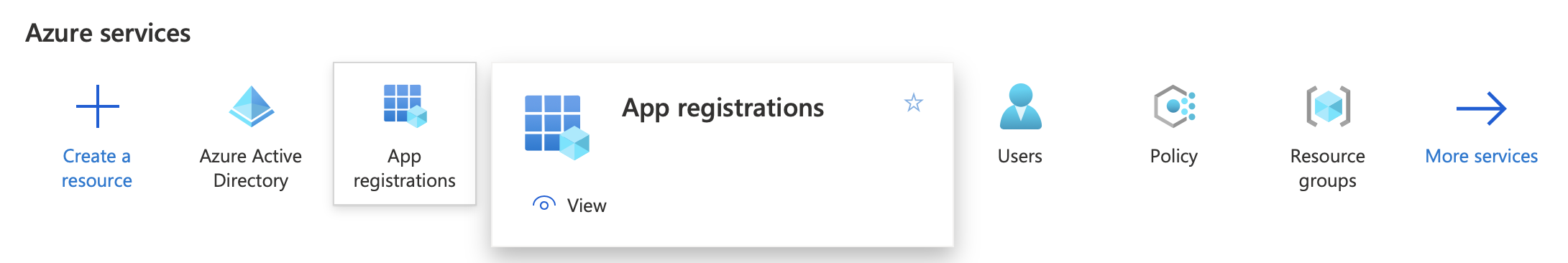

App Registration
New Registration

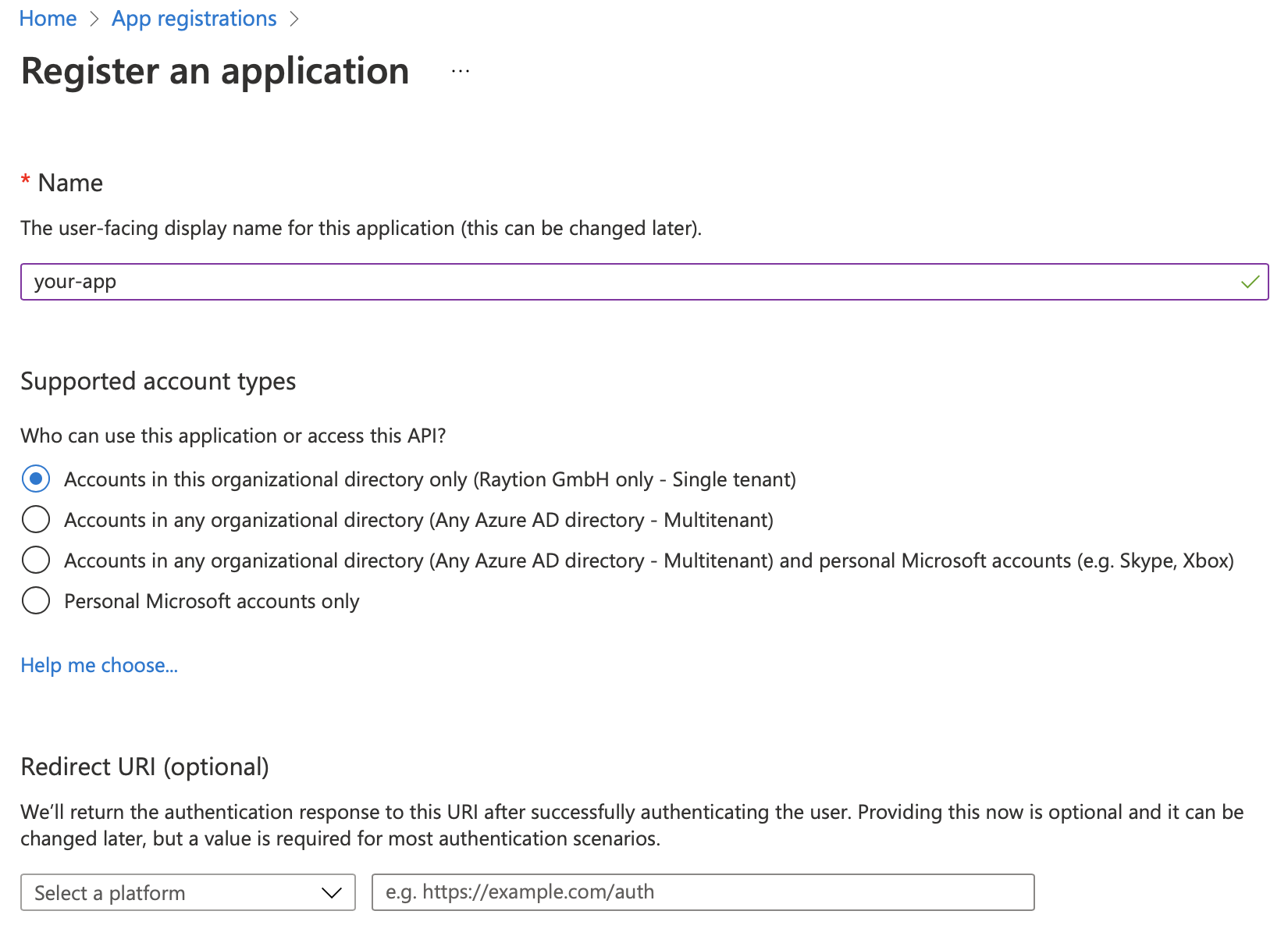

Type the name and select the option Accounts in this organizational directory only and submit the registration with register. Omit the Redirect URI for your app.

Your App Registration

Create Client Secret

Add Client Secret under Certificates & secrets → Client secrets.

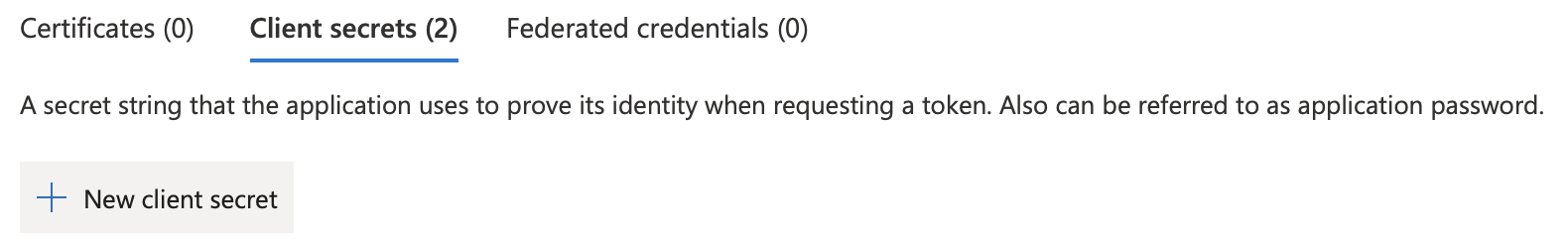

Client Secrets

Submit your new client secret with the option New client secret.

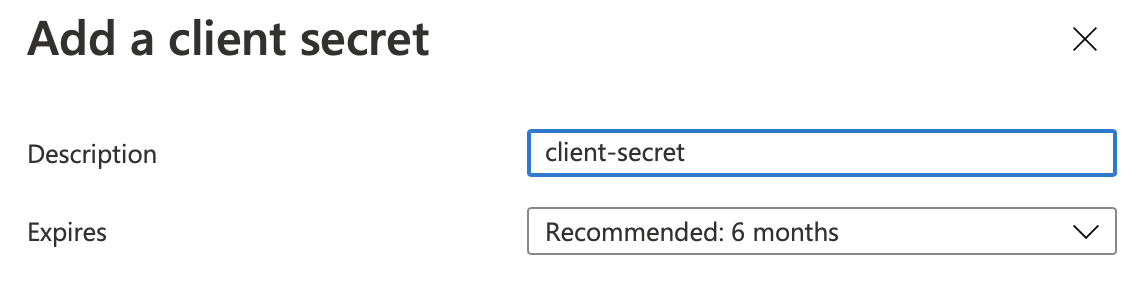

Add Client Secret

Define API Permissions

The connector requires access to the Microsoft Search External Connection/Item API for synchronizing external content items and to Users/Groups API for synchronizing principal information. To assign the required permission to your app, navigate to API permissions inside your app menu.

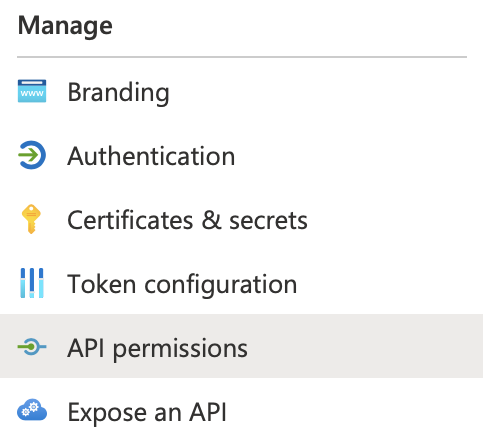

New Registration

With the option Add a permission, you can assign new permissions to your app.

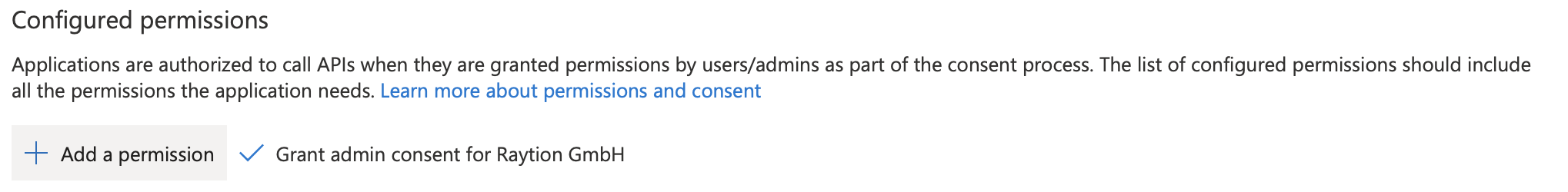

Add Permission

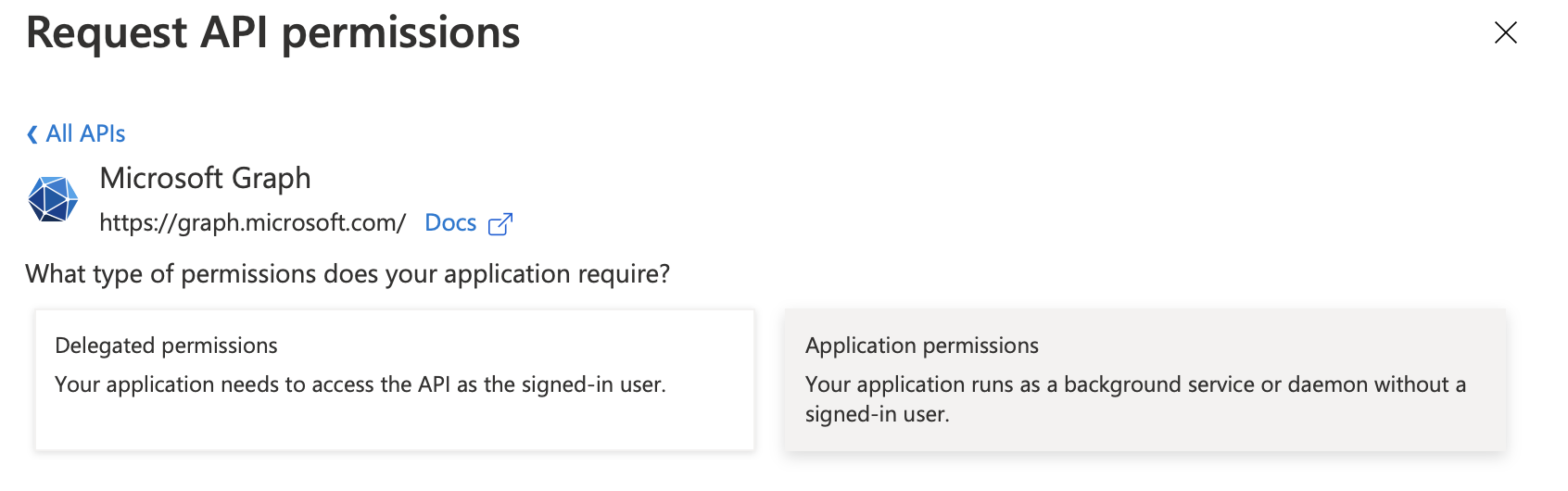

Register all permissions as Microsoft Graph API Application permission.

Graph API Application Permission

Add External Connection/Item Permissions

To access the Microsoft Search API, following permissions are required by the app:

  • ExternalConnection.ReadWrite.OwnedBy

  • ExternalItem.ReadWrite.All

  • ExternalItem.ReadWrite.OwnedBy

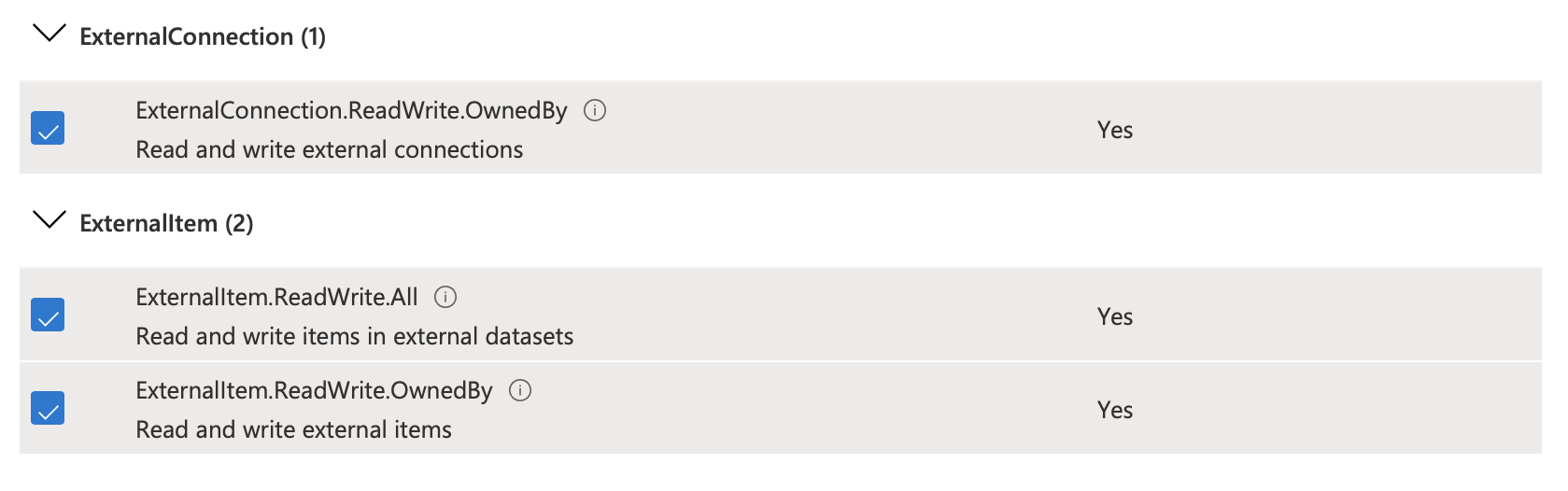

External Connection/Item Permissions

Add Users and Groups Permissions

To access user and group information for your tenant, the app requires following permissions:

  • Group.Read.All

  • User.Read.All

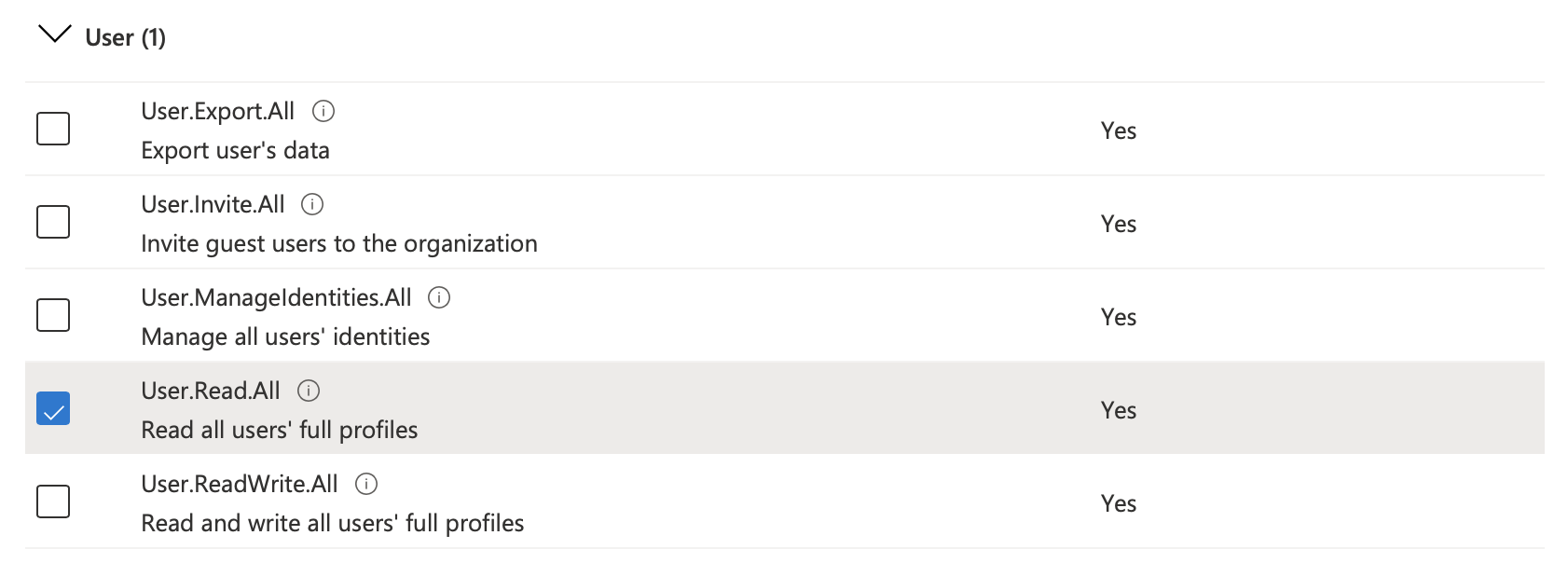

User Permission

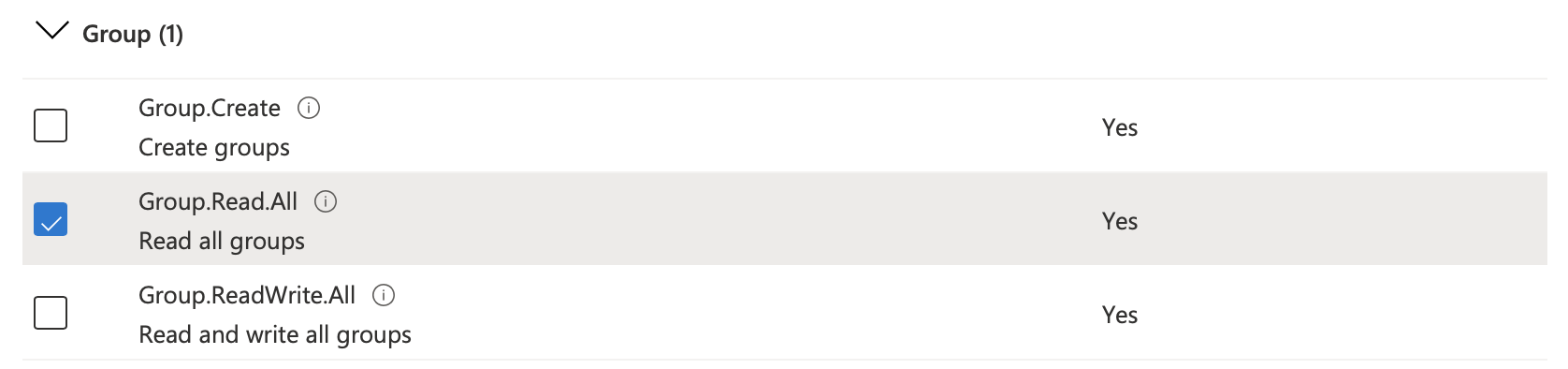

Group Permission
Make sure to grant admin consent for all permissions.
